Marine Heat Exchanger GY0200C
The COAXIAL-Z coaxial heat exchanger is an advanced thermal management solution designed specifically for marine vessels, featuring efficient tube-in-tube construction and customizable sizing from 1 to 100 kgs with liquid flow rate GY0200C.
Product Overview

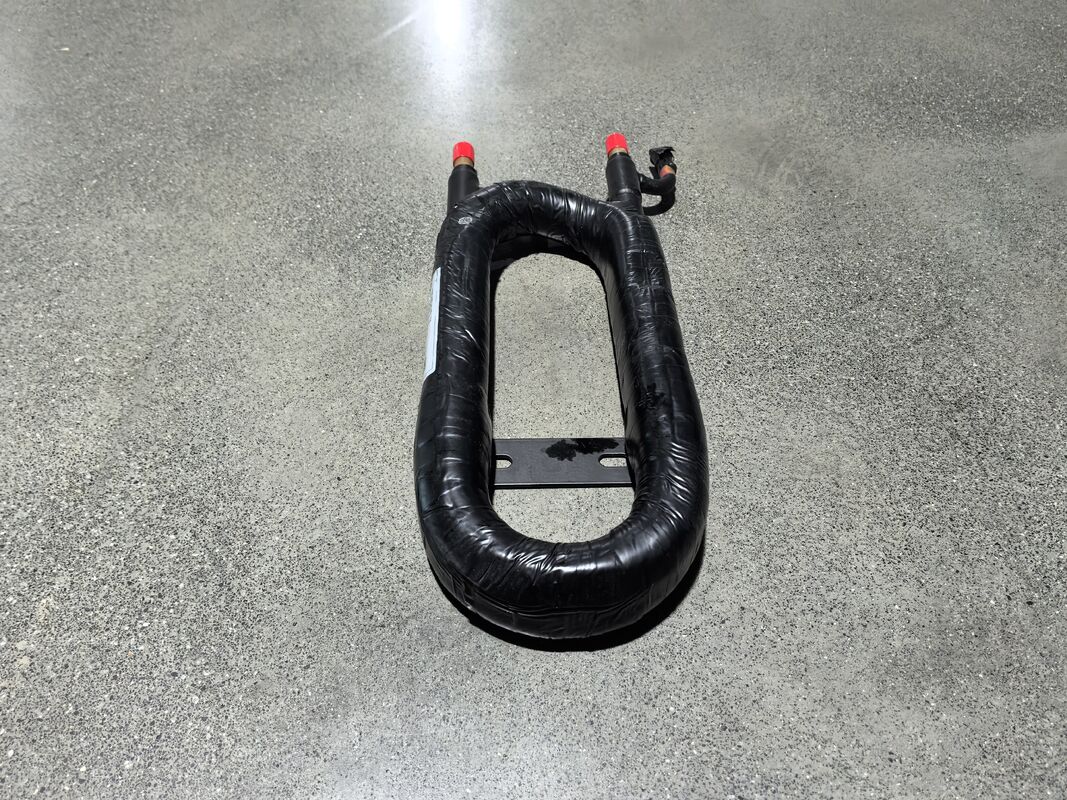

This high-performance coaxial heat exchanger utilizes a sophisticated tube-in-tube design where one fluid flows through the inner tube while the other circulates through the annular space between inner and outer tubes. This configuration ensures maximum thermal contact and efficient heat transfer within a compact footprint.
Key Specifications
- Height: 520 mm
- Customizable tube length: 2 to 10 meters
- Variable heat transfer area: 1 to 10 m²
- Weight range: 1 to 100 kgs
- Operating temperature range: -50°C to 300°C
- Hot water applications: 30°C to 99°C
Applications
The COAXIAL-Z heat exchanger is engineered for diverse marine and industrial applications including HVAC systems, chemical processing, power generation, and renewable energy installations. Its compact design and robust construction make it ideal for space-constrained marine environments.
| Certification |
Supply Capacity |
Delivery Time |
Minimum Order |
| CE, ROHS, REACH |
500 sets per day |
21 working days |
20 sets |
Customization Options
Gimleo offers comprehensive customization services for the COAXIAL-Z model, including tailored sizing, heat transfer area adjustments, and specialized marine-grade configurations to meet specific project requirements.
Technical Support & Services
Our comprehensive support includes installation guidance, maintenance protocols, troubleshooting assistance, and performance optimization. We provide detailed documentation and custom design consultations to ensure optimal system integration.
Packaging & Shipping
Each unit is securely packaged in protective materials and plywood cases to ensure safe transit. We offer flexible shipping options including air, sea, and ground transportation with complete documentation for customs clearance.
Frequently Asked Questions
What is the brand and model number of the coaxial heat exchanger?
The coaxial heat exchanger is branded as Gimleo, and the model number is COAXIAL-Z.
Where is the Gimleo COAXIAL-Z coaxial heat exchanger manufactured?
The Gimleo COAXIAL-Z coaxial heat exchanger is made in China.
What certifications does the Gimleo COAXIAL-Z have?
The product is certified with CE, ROHS, and REACH standards.
What are the packaging details and delivery time?
The heat exchangers are packaged in plywood cases, and the delivery time is 21 working days.
What payment terms does Gimleo offer?
Payment is accepted via T/T, with 100% payment required upon order confirmation.
